Implementation Diagram IP Map Vonage Phones

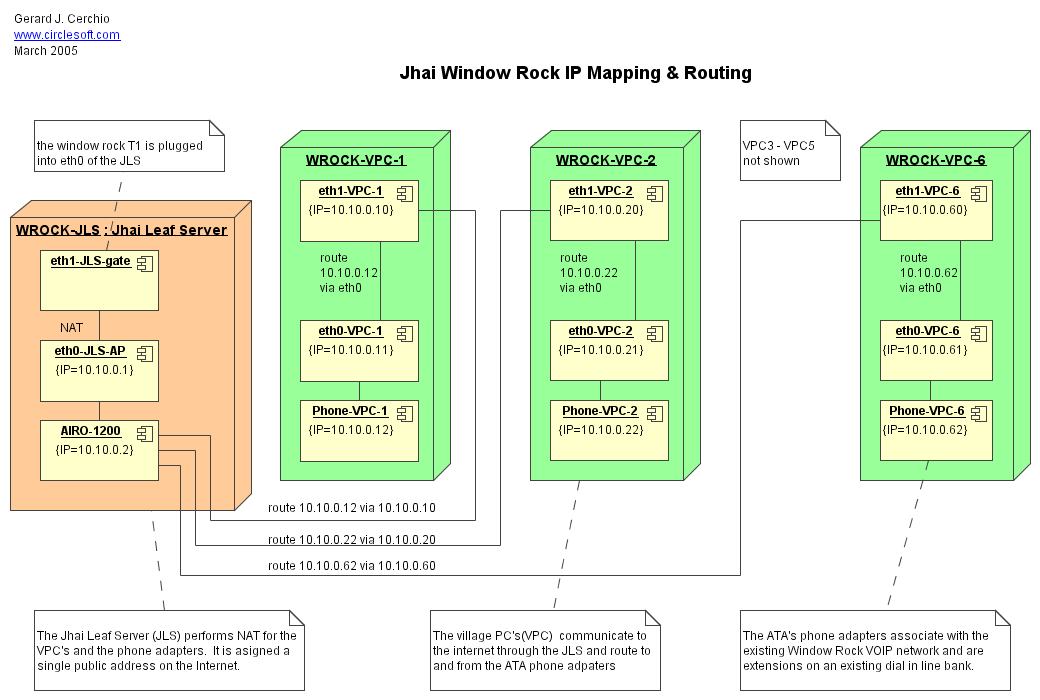

This implementation diagram maps out the Vonage phone VOIP decision
eth1-JLS-gate eth0-JLS-AP AIRO-1200 route 10.10.0.12 via 10.10.0.10 route 10.10.0.12 via 10.10.0.10 route 10.10.0.22 via 10.10.0.20 route 10.10.0.22 via 10.10.0.20 route 10.10.0.62 via 10.10.0.60 route 10.10.0.62 via 10.10.0.60 NAT NAT 100 Base-T to the AiroNet access point cross over cable 100 Base-T to the AiroNet access point cross over cable WROCK-JLS eth1-VPC-1 eth0-VPC-1 Phone-VPC-1 route 10.10.0.12 via eth0 route 10.10.0.12 via eth0 Cross over cable Cross over cable WROCK-VPC-1 eth1-VPC-2 eth0-VPC-2 Phone-VPC-2 cross over cable cross over cable route 10.10.0.22 via eth0 route 10.10.0.22 via eth0 WROCK-VPC-2 eth1-VPC-6 eth0-VPC-6 Phone-VPC-6 cross over cable cross over cable route 10.10.0.62 via eth0 route 10.10.0.62 via eth0 WROCK-VPC-6 http://www.circlesoft.com

General Info
Name IP Map Vonage Phones
Type Implementation Diagram
