Window Rock
Implementation Diagram Window Rock Implementaion

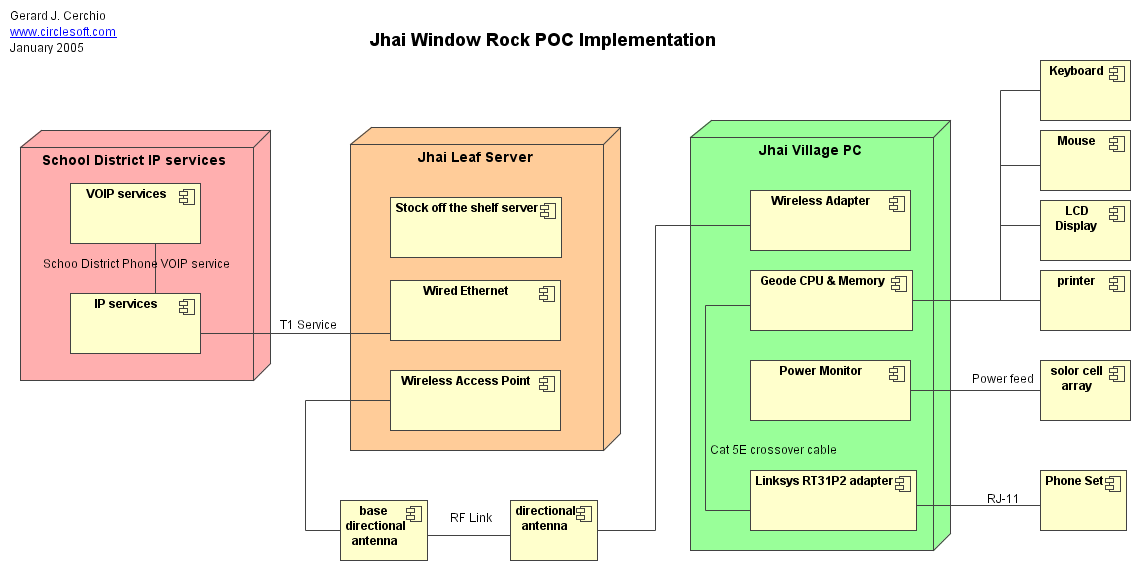

This Diagram describes how all the Jhai system componenets integrate into the Window Rock POC project.
Stock off the shelf server Wired Ethernet Coax Coax Wireless Access Point Jhai Leaf Server VOIP services Schoo District Phone VOIP service Schoo District Phone VOIP service IP services T1 Service T1 Service School District IP services Geode CPU & Memory Power Monitor Linksys RT31P2 adapter RJ-11 RJ-11 Power feed Power feed Wireless Adapter RF Coax RF Coax SVGA video & power SVGA video & power PS2 serial mouse PS2 serial mouse PS2 KB PS2 KB Printer cable Printer cable Cat 5E crossover cable Cat 5E crossover cable Jhai Village PC Phone Set Keyboard Mouse LCD Display solor cell array directional antenna base directional antenna RF Link RF Link printer http://www.circlesoft.com

General Info
Name Window Rock Implementaion
Type Implementation Diagram
